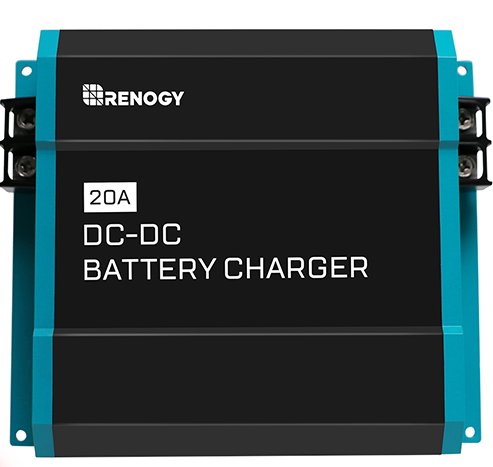

Renogy 20A DC to DC Battery Charger

Limited Stock

Description

Meet the Renogy 12V 20A DC to DC Battery Charger, the second generation of the DCC series. Built for the ultimate on-the-go charging experience, this state-of-the-art charger combines efficient energy utilization with smart control. It is compatible with both traditional and smart generators, safeguarding the batteries of your vehicle while reaching up to 94% charging efficiency.

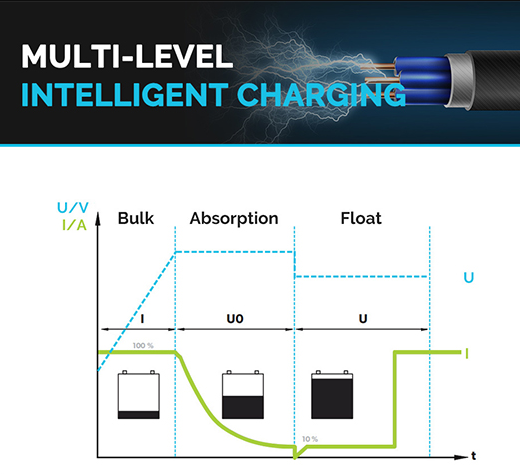

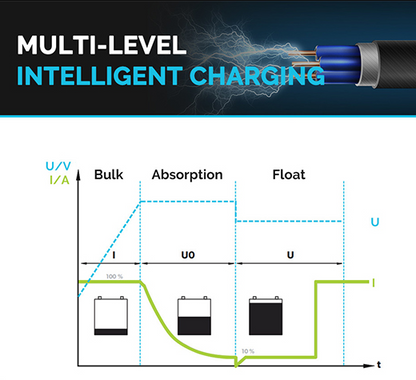

With advanced charging logic, the charger improves performance for better energy management. Stay on top of things through remote monitoring with the Renogy app to check system status at any time and from anywhere.

Whether one is venturing out into the great outdoors or simply embracing the van life, the Renogy 12V 20A DC to DC Battery Charger is a reliable companion for efficient and effective charging.

• Alternator running detection safeguards the starter battery.

• Simple and compact layout ensures easy installation.

• BT-2 Bluetooth enables remote monitoring.

• Advanced protections ensure efficient and safe charging.

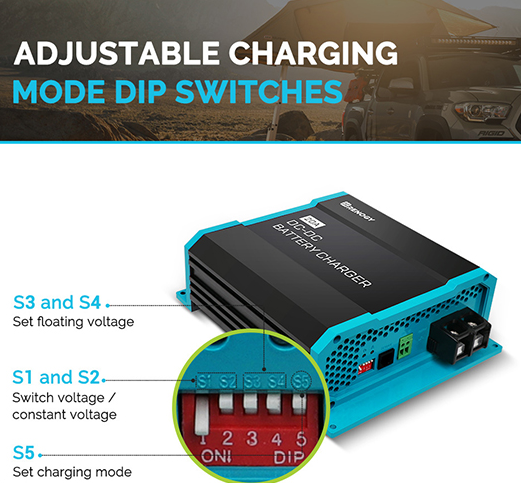

• Lithium Ion Battery Activation offers customization.

Battery Charger

x 1

Battery Temperature Sensor

x 1

IGN Signal Wire

x 1

User Manual

x 1

Terminal Ring

x 1

GENERAL DATA

Terminal Range: 10AWG - 8AWG

Grounding: Common Negative

Communication Protocol: RS485 Communication

Operating Temperature Range: -4℉ -122℉ /-25 ℃ - 60℃

Storage Temperature Range: -4℉ -122℉ /-40 ℃ - 85℃

Humidity: 0%-95%, No Condensation

Maximum Operating Altitude: 3000m

Enclosure Rating: 0%- 95% ,no condensation

Dimensions: 9.31 in (236.5 mm)x5.17 in (131.5 mm)x2.36 in(60.5 mm)

Weight: 3.3 lb / 1.5 kg

Certification: CE/RoHS/FCC

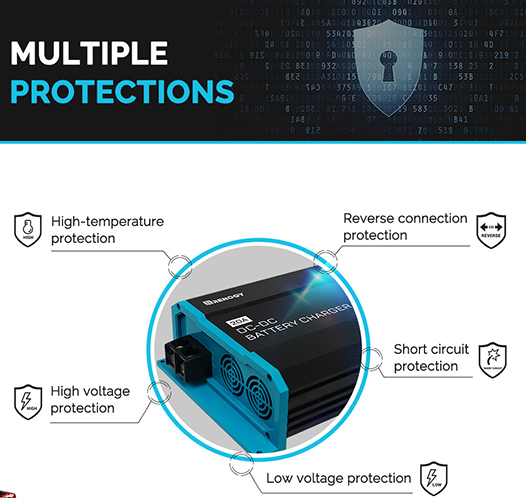

Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection

ELECTRICAL DATA

System Voltage: 12V-12V

Alternator Input Voltage: "Traditional Alternator: 13.2-16.0VDC; Smart Alternator (Euro 6): 12-16.0VDC"

Maximum Output Current Rating: 20A

Output Power: 292W

Battery Types: AGM, Gel, Flooded, Lithium-iron Phosphate

User Input Fuse Rating: 40A

Output Fuse Rating: 30A

Charging Efficiency: 94%

Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium);0mV / ℃ / 2V; no compensation (Lithium);＜15mA

Idle Power Consumption: ＜15mA
